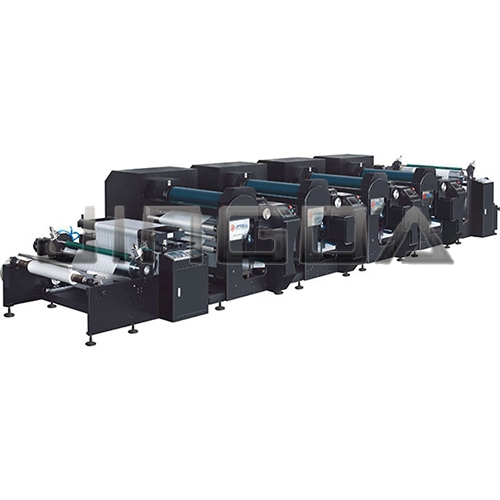

JA1000 series reel offset press
 |
 |
 |
JA1000 series replaceable type offset printing machine: Wide printing width, variable printing size.Mainly printing on non-woven, packaging paper, composite materials, as well as special packaging of the web printing.Full servo motion system with high accuracy.Each color group is equipped with control panel, easy to operate.Narrow slit install the plate, the interface is small.Printing cylinder size can be changed to achieve printing size change.
技術參數/Main Technical Parameter:
Web Width | 1096 43＂ |
Printing Width | 965 38＂ |
Printing Repeat | 600～820 |
Unwinding diameter | 800 |
Rewinding diameter | 800 |
Printing Speed | 0～90（m） |
Drive | Servo Technology |
Printing cylinder | Replaceable Type |
Output | 52.2kw |
UV Dryer | 4 Sets |
Power | 380v 50HZ |
